/NOME RockMonitor XR

Safety and
efficiency
- Remote strata monitoring of structure integrity
- Provides advanced notice of excessive movement or potential failure
- Help plan and optimize roof support / bolting strategies.
Benefits
- Real-time monitoring avoids production stops for manual readings
- Alarms can be configured by location, rate of movement, or absolute thresholds
- Ease of installation

001
System
Components

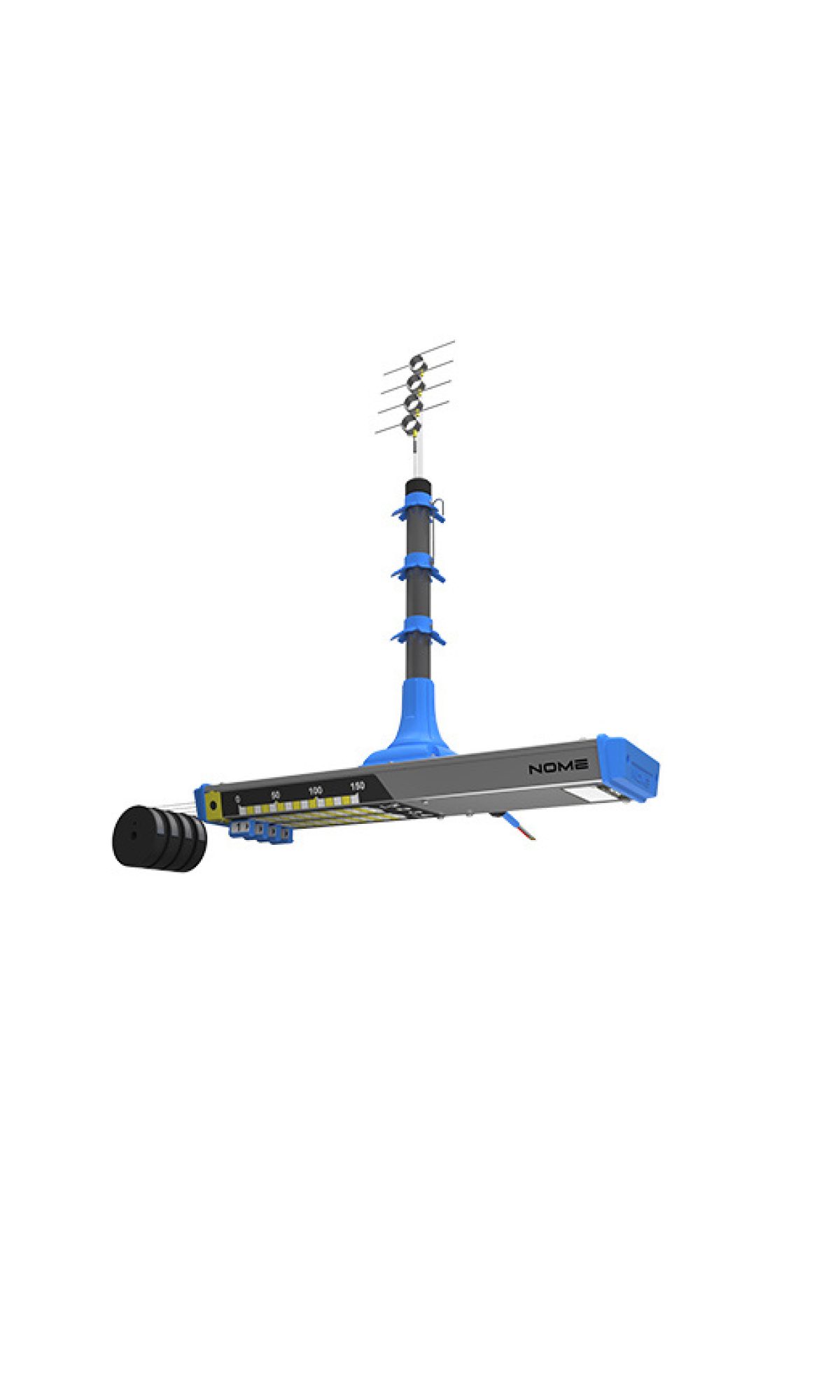

Telltale measurement units (anchors + displacement markers) installed in boreholes underground
A Controller that collects data
A Reader device used during installation and maintenance

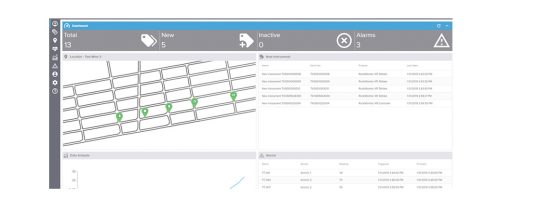

Application software displays live and historical data, supports GIS mapping, alarms, and reporting
002
Data Transmission
Supports SCADA integration for automated control room visibility
Telltales can be added dynamically and auto-configure
The network topology can be daisy-chain or spur (branch off) designs
003
Measurements
Each telltale unit can host 2 or 4 measurement anchors
Borehole diameter: 35–45 mm
Displacement measurement range: 0 to 150 mm (without reset)
Accuracy: <1.0 mm, repeatability < 0.1 mm
The system controller supports up to 150 telltales per controller
Full system refresh rate (for 150 telltales) is 15 minutes
